Access control systems serve a critical role in any sensitive area, allowing only the right persons to enter at a given time. Multiple configurations cater to various budgets and needs, ranging from the simplest card reader to the now commonly used fingerprint terminals, to the algorithm-enabled facial recognition terminal. Hikvision’s many devices-such as controllers, card readers, turnstiles, and door locks – offer you a complete and secure access control system.

   ระบบควบคุมการเข้าออก มีบทบาทสำคัญในพื้นที่ที่มีความละเอียดอ่อน อนุญาตให้เฉพาะบุคคลที่เหมาะสมเท่านั้นที่จะเข้ามาได้ในเวลาที่กำหนด การกำหนดค่าที่หลากหลายรองรับงบประมาณและความต้องการที่หลากหลาย ตั้งแต่เครื่องอ่านบัตรที่ง่ายที่สุดจนถึงเครื่องอ่านลายนิ้วมือที่ใช้กันทั่วไปในปัจจุบัน ไปจนถึงเครื่องอ่านลายนิ้วมือที่ใช้อัลกอริธึม อุปกรณ์มากมายของ Hikvision เช่น ตัวควบคุม เครื่องอ่านการ์ด ประตูหมุน และตัวล็อคประตู นำเสนอระบบควบคุมการเข้าออกที่สมบูรณ์และปลอดภัยแก่คุณ

Hikvision Products

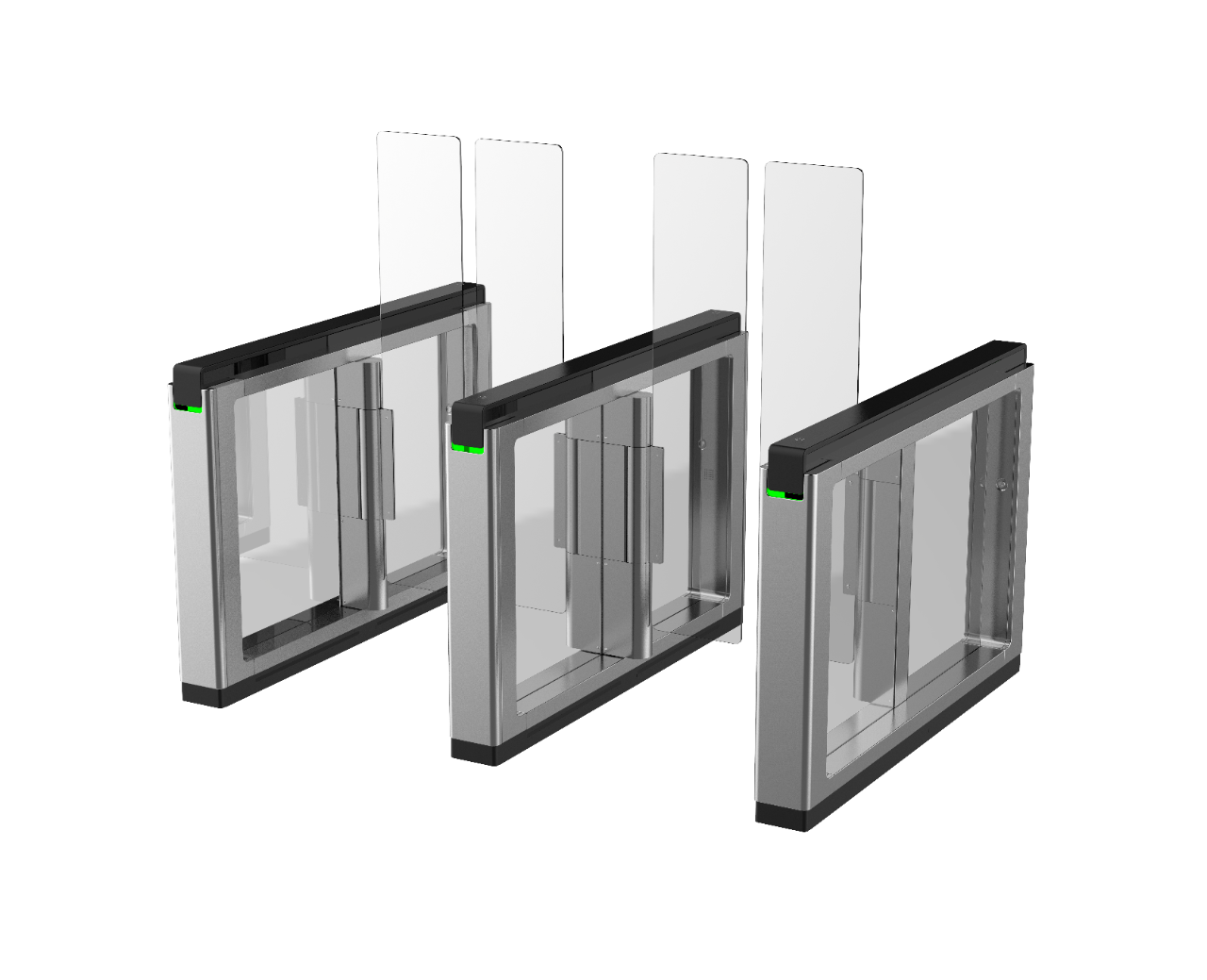

- Swing Barriers

DS-K3B411X

Value Swing Barriers

  • 6 pairs of IR light detectors
  • LED light indicates passing direction
  • Audible and visual nipping alarm
  • Self-detection,Self-diagnostics, automatic alarm
  • Valid passing duration settings
  • Door remaining open when fire alarm triggered
  • Barrier will automatically open when powering down
  • Mortor: Brush motor

DS-K3B501SX

Value Swing Barriers

  • 12pairs of IR light detectors
  • LED light indicates passing direction
  • Audible and visual nipping alarm
  • Self-detection,Self-diagnostics, automatic alarm
  • Valid passing duration settings
  • Door remaining open when fire alarm triggered
  • Barrier is in free status when powering down
  • Mortor: Servo motor

DS-K3B801SX

Ultra Series Swing Barriers

  • TCP/IP
  • Permissions validation and anti-tailgating
  • Bidirectional lane
  • The barrier will be locked or stop working when people are nipped
  • Self-detection,Self-diagnostics, automatic alarm
  • Audible and visual alarm will be triggered when detecting intrusion, tailgating, reverse passing, climbing over barrier, overstay
  • Fire alarm passing

DS-KB802X

Ultra Series Swing Barriers

  • Built-in card reader and access controller
  • The barrier will be locked or stop working when people are nipped
  • Self-detection,Self-diagnostics, automatic alarm
  • Audible and visual alarm will be triggered when detecting intrusion, tailgating, reverse passing, climbing over barrier, overstay
  • The barrier’s material is high-strength tampered glass, sticked with film which will not cause injury when the glass is broken.
  • Motor : Servo motor

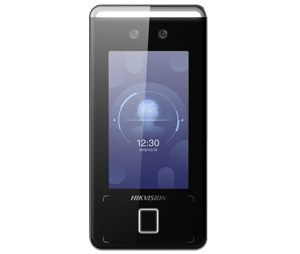

- Face Recognition

DS-K1T341AMF

Value Series Face Access Terminal

  • Face mask wearing alert
  • Forced mask wearing alert
  • Face Recognition
  • Max 3,000 faces capacity, Max 3,000 fingerprints capacity and Max 3,000 cards
  • Two-way audio
  • Supports TCP/IP
  • Supports ISUP5.0, ISAPI
  • IP6

DS-K1T671MF

Pro Face Access Terminal

  • Face mask wearing alert
  • 7-inch LCD touch screen, 2 Megapixel wide-angle lens, Built-in Mifare card reading module
  • Face recognition
  • Max 6,000 faces, Max 6,000 cards and Max 5,000 fingerprints
  • Two-way audio
  • Supports TCP/IP
  • Supports ISAPI and ISUP5.0 protocol
  • IP65

DS-K1T680DFW

Ultra Series Wall-Mounted Face Access Terminal

  • 8-inch touch screen with bezel-less design
  • Presents card on the screen to authenticate
  • Face recognition
  • 100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), 10,000 fingerprint capacity, and 150,000 event capacity
  • Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, Wi-Fi
  • Two-way audio with indoor station and main station

DS-K5671-ZU

Face Recognition Module For Turnstile

  • Forced mask wearing alert
  • Face mask wearing alert
  • Face recognition terimnal for turnstile
  • Built-in IO output or Wiegand output to communicate with the third-party turnstile
  • 7-inch LCD Touch Screen, 2MP camera
  • Max 50,000 faces and Max 100,000 events
  • Face recognition
  • TCP/IP, Wi-Fi
  • IP65

DS-K5671-ZV

Face Recognition Module For Turnstile

  • Forced mask wearing alert
  • Face mask wearing alert
  • Face recognition terimnal for turnstile
  • Built-in IO output or Wiegand output to communicate with the third-party turnstile
  • 7-inch LCD Touch Screen, 2MP camera
  • Max 50,000 faces and Max 100,000 events
  • Face recognition
  • TCP/IP, Wi-Fi
  • IP65

- Fingerprint

DS-K1A8503EF-B

Value Series Fingerprint Time Attendance Terminal

  • 2.4-inch LCD screen
  • TCP/IP
  • fingerprint recognition
  • Max 1000 user, Max 1000 fingerprints and Max 100,000 events records
  • Stand-alone operation
  • Supports 6 attendance status
  • Generates reports automatically
  • ISAPI, ISUP 5.0

DS-K1A802AEF-B

Pro Series Fingerprint Time Attendance Terminal

  • Built-in EM card reading module
  • 3,000 fingerprints, 3,000 cards and 100,000 events storage
  • TCP/IP, Wi-Fi
  • Power supply: 5 VDC/1 A
  • Back-up battery supported
  • ISUP5.0, ISAPI

DS-K1T201AMF

Ulta Series Fingerprint Terminal

  • Fingerprint Access Control Terminal
  • 2.8-inch LCD display screen
  • 5,000 fingerprints, 100,000 cards (Mifare card), 300,000 events storage
  • TCP/IP, Wi-Fi
  • RS-485 and Wiegand interface
  • ISUP5.0, ISAPI

- Card Reader

DS-K1T105AE

Pro Series Card

  • Terminal Touch mode and blue light display technique for keypad
  • Stand-alone settings for terminal
  • 2.8-inch LCD display screen
  • Max 100,000 valid card and Max 300,000 access control events
  • Supports multiple door opening modes (card, card+password, exit button, etc.)
  • Supports EM card reading
  • Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, forced opening door alarm and duress card alarm
  • RS-485, Wiegand (26/34)
  • TCP/IP , Wi-Fi
  • ISUP5.0

DS-K1T802M

Value Series Network Wire Card Terminal

  • Standalone access control card terminal
  • 3,000 card and 10,000 event storage
  • Access control function
  • TCP/IP
  • Offline event alarm upload

DS-K1T107AE

Pro Series Card Reader

  • Equipped with the 32-bit high-speed processor
  • Built-in EM card reading module (125 KHz)
  • Supports tampering alarm
  • Built-in buzzer for identifying the reading status
  • Online upgrade function
  • Watchdog design for repairing itself in case that exception occurs to ensure the long service life of the reade
  • RS-485, Wiegand (W26/W34) protocol, OSDP protocol

DS-K1T107AEK

Pro Series Card Reader

  • Equipped with the 32-bit high-speed processor
  • Built-in EM card reading module (125 KHz)
  • Supports tampering alarm
  • Built-in buzzer for identifying the reading status
  • Online upgrade function
  • Watchdog design for repairing itself in case that exception occurs to ensure the long service life of the reader
  • RS-485, Wiegand (W26/W34) protocol, OSDP protocol

DS-K1801

Value Series Card Reader

  • Mifare1 / EM card reader
  • PC+ABS material shell
  • Built-in audible beeper
  • Wiegand interface
  • IP65

DS-K1802

Value Series Card Reader

  • Mifare1 / EM card reader
  • PC+ABS material shell
  • Built-in audible beeper
  • Wiegand interface
  • IP65

- Controller

DS-K2800

Value Series Card Access Controller

  • 10,000 cards and 50,000 events storage
  • One door access control
  • TCP / IP
  • Alarn input / output and alarm event upload
  • Wiegand interface for accessing card reader

DS-K2210

Elevator Master Controller

  • Control 128floor permission
  • TCP/IP,RS-485 and Wiegand
  • Input : 1 Panic Button, 1 Fire Alarm Button, 1 Maintenance Button
  • Output : 5 Relay Outputs
  • Support : Internal Clock
  • Support : RTC

DS-K2M0016A

Elevator Sub Controller

  • Distributed elevator controller
  • DIP switch settings for device address and relay types
  • Alarm Input : 2
  • Relay Output : 16
  • Buzzer : 1
  • RS-485 Interface : 2
