- Camera
DH-SF125-S2
2MP IR Mini-Bullet Network Camera
- 2MP 1920 x 1080 @ 30fps
- 1/2.7″ CMOS
- WDR: DWDR
- Lens: 3.6 mm
- 0.01 lux
- IR up to 30M
- Digital Zoom 16x
- ICT Spec
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- H.265+
- IP 67

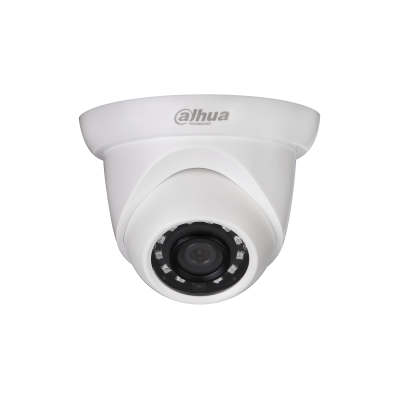

DH-SE125-S2
2MP IR Eyeball Network Camera
- 2MP 1920 x 1080 @ 30fps
- 1/2.7″CMOS
- WDR: DWDR
- Lens: 3.6 mm
- 0.01 lux
- IR up to 30M
- Digital Zoom: 16x
- ICT Spec
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- H.265+
- IP67
DH-IPC-HFW3249T1P-AS-PV
2MP Full-color Active Deterrence Fixed-focal Bullet WizScense Network Camera
- 2MP 1920 x 1080 @ 30fps
- 1/2.8″CMOS
- WDR: 120 dB
- Lens: 3.6 mm
- 0.0015 lux
- LED up to 40M
- Two way talk
- Micro SD Card up to 256 GB
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- H.265+
- IP 67

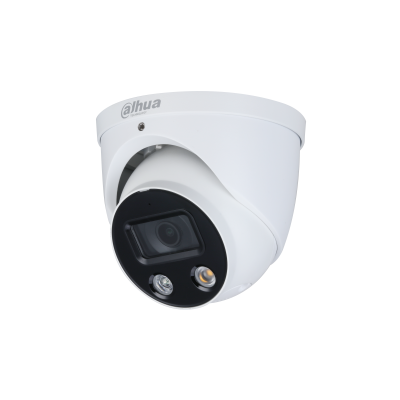

DH-IPC-HDW3249HP-AS-PV
2MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera
- 2MP 1920 x 1080 @ 30fps
- 1/2.8″CMOS
- WDR: 120 dB
- Lens: 3.6 mm
- 0.0015 lux
- LED up to 40M
- Two way talk
- Micro SD Card up to 256 GB
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- H.265+
- IP 67
DH-IPC-HDBW5241R-ASE
2MP WDR IR Dome WizMind Network Camera
- 2MP 1920 x 1080 @ 30fps
- 1/2.8″CMOS
- WDR: 120 dB
- Lens: 2.8 mm
- 0.002 lux
- IR up to 50M
- Starlight, WizMind, Face detection, Perimeter Protection, People counting
- Micro SD Card up to 256 GB
- Audio I/O : 1/1, Alarm I/O : 1/1
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- H.265+
- IP 67, IK 10
DH-IPC-HFW5241E-SE
2MP IR Fixed-focal Bullet WizMind Network Camera
- 2MP 1920 x 1080 @ 30fps
- 1/2.8″CMOS
- WDR: 120 dB
- Lens: 3.6 mm
- 0.002 lux
- IR up to 50M
- Starlight, WizMind, Face detection, Perimeter Protection, People counting
- Micro SD Card up to 256 GB
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- H.265+
- IP 67
DH-IPC-HFW2431T-ZAS-S2
4MP Lite IR Vari-focal Bullet Network Camera
- 4MP 2560 x 1440 @ 30fps
- 1/3″CMOS
- WDR: 120 dB
- Lens: 2.7-13.5 mm
- 0.008 lux
- IR up to 60M
- Micro SD Card up to 256 GB
- Audio I/O: 1/1, Alarm I/O: 1/1
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- H.265+
- IP 67, IK 10
DH-IPC-HDBW2431R-ZAS-S2
4MP Lite IR Vari-focal Dome Network Camera
- 4MP 2560 x 1440 @ 30fps
- 1/3″CMOS
- WDR: 120 dB
- Lens: 2.7-13.5 mm
- 0.008 lux
- IR up to 40M
- Starlight
- Micro SD Card up to 256 GB
- Audio I/O: 1/1, Alarm I/O: 1/1
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- H.265+
- IP 67, IK 10
DH-IPC-HFW5442E-ZE
4MP IR Vari-focal Bullet WizMind Network Camera
- 4MP 2688 x 1520 @ 30fps
- 1/1.8″CMOS
- WDR: 140 dB
- Lens: 2.7-12 mm
- 0.003 lux
- IR up to 50M
- Micro SD Card up to 256 GB
- Audio I/O: 1/1, Alarm I/O: 2/1
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- Face detection, Face Attributes, Perimeter protection, People counting
- ICT Spec
- H.265
- IP 67, IK 10
DH-IPC-HDBW5442E-ZE
4MP Pro AI IR Vari-focal Dome Network Camera
- 4MP 2688 x 1520 @ 30fps
- 1/1.8″CMOS
- WDR: 140 dB
- Lens: 2.7-12 mm
- 0.003 lux
- IR up to 40M
- Micro SD Card up to 256 GB
- Audio I/O: 1/1, Alarm I/O: 1/1
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- Face detection, Face Attributes, Perimeter protection, People counting
- ICT Spec
- H.265
- IP 67, IK 10

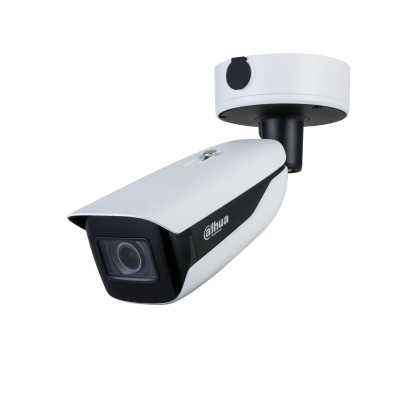

DH-IPC-HFW7442H-ZFR
4MP IR Bullet WizMind Network Camera
- 4MP 2688 x 1520 @ 60fps
- 1/1.8″CMOS
- WDR: 140 dB
- Lens: 2.7-12 mm
- 0.001 lux
- IR up to 60M
- Micro SD Card up to 256 GB
- Audio I/O: 1/1, Alarm I/O: 3/2
- Intelligent Video Analysis(IVS): Tripwire, Intrusion, Abandoned object, Moving object
- Face recognition, Video metadata, People counting, Intelligent Search
- H.265+
- IP 67, IK 10
DH-IPC-HFW2531T-AS-S2
5MP Lite IR Fixed-focal Bullet Network Camera
- 5MP 2688 x 1520 @ 30fps
- 1/2.7″CMOS
- WDR: 120 dB
- Lens: 3.6 mm
- 0.008 lux
- IR up to 80M
- Starlight Technology
- Micro SD Card up to 256 GB
- Audio I/O: 1/1, Alarm I/O: 1/1
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- ICT Spec
- H.265+
- IP 67, IK 10
DH-IPC-HFW2531T-ZAS-S2
5MP Lite IR Vari-focal Bullet Network Camera
- 5MP 2592 x 1944 @ 20fps
- 1/2.7″CMOS
- WDR: 120 dB
- Lens: 2.7-13.5 mm
- 0.008 lux
- IR up to 60M
- Starlight Technology
- Micro SD Card up to 256 GB
- Audio I/O: 1/1, Alarm I/O: 1/1
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- H.265+
- IP 67
DH-IPC-HFW5541E-ZE
5MP IR Vari-focal Bullet WizMind Network Camera
- 5MP 2592 x 1944 @ 20fps
- 1/2.7″CMOS
- WDR: 120 dB
- Lens: 2.7-13.5 mm
- 0.005 lux
- IR up to 50M
- Micro SD Card up to 256 GB
- Audio I/O: 1/1, Alarm I/O: 2/1
- Face detection, Face attributes, Perimeter protection, People counting, Heat map
- ICT Spec
- H.265
- IP 67, IK 10

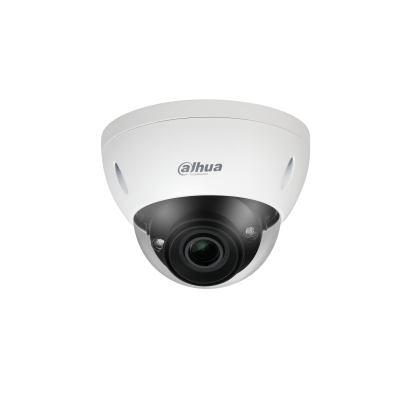

DH-IPC-HDBW5541E-ZE
5MP IR Vari-focal Dome WizMind Network Camera
- 5MP 2592 x 1944 @ 20fps
- 1/2.7″CMOS
- WDR: 120 dB
- Lens: 2.7-13.5 mm
- 0.005 lux
- IR up to 40M
- Micro SD Card up to 256 GB
- Audio I/O: 1/1, Alarm I/O: 2/1
- Face detection, Face attributes, Perimeter protection, People counting, Heat map
- ICT Spec
- H.265
- IP 67, IK 10
DH-IPC-HFW2831T-ZS-S2
8MP Lite IR Vari-focal Bullet Network Camera
- 8MP 3840 x 2160 @ 15fps
- 1/2.7″CMOS
- WDR: 120 dB
- Lens: 2.7-13.5 mm
- 0.008 lux
- IR up to 60M
- Micro SD Card up to 256 GB
- Starlight Technology
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- ICT Spec
- H.265+
- IP 67
- Special Camera
DH-SD3A205-GNP-PV
2MP Starlight IR AI WizSense Network PTZ Camera
- 2MP 1920 x 1080 @ 30fps
- 1/2.8″CMOS
- WDR: DWDR
- Lens: 2.7-13.5 mm
- 0.002 lux
- IR up to 30M
- Two way talk
- Perimeter Protection, Starlight, SMD Plus
- Micro SD Card up to 256 GB
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- Pan: 0° ~ 355° endless
- H.265+
- IP 66

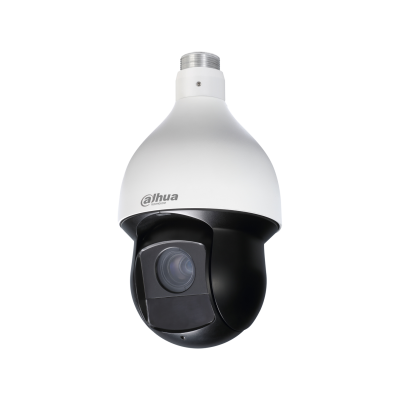

DH-SD59230U-HNI
2MP 30x Starlight IR PTZ Network Camera
- 2MP 1920 x 1080 @ 60fps
- 1/2.8″CMOS
- WDR: 120 dB
- Lens: 4.5-135 mm
- 0.005 lux
- IR up to 150M
- Ultra DNR
- Starlight, Wide Dynamic Range, PFA Technology
- Micro SD Card up to 256 GB
- Intelligent Video Analysis(IVS): Tripwire, Intrusion, Abandoned/Missing
- Pan: 0° ~ 360° endless
- Auto Tracking
- ICT Spec
- H.265+
- IP 66
DH-SD5A432XA-HNR
4MP 32x Starlight IR WizSense Network PTZ Camera
- 4MP 2560 x 1440 @ 30fps
- 1/2.8″CMOS
- WDR: 120 dB
- Lens: 4.9-156 mm
- 0.005 lux
- IR up to 150M
- Starlight+ Technology, PFA Technology, SMD Plus
- Micro SD Card up to 256 GB
- Audio I/O: 1/1, Alarm I/O: 1/1
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- Perimeter protection, Face detection, Smart capture
- Pan: 0° ~ 360° endless
- H.265+
- IP 67, IK 10
DH-IPC-EB5541-AS
5MP WizMind Fisheye Network Camera
- 5MP 2592 x 1944 @ 30fps
- 1/2.7″CMOS
- WDR: 120 dB
- Lens: 1.4 mm
- 0.006 lux
- Micro SD Card up to 256 GB
- Built-in Mic, Audio I/O: 1/1, Alarm I/O: 1/1
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- People counting, Intelligent search, Heat map
- Pan: 0° ~ 355°
- H.265+
- IP 67, IK 10
DH-IPC-EW5541-AS
5MP WizMind IR Fisheye Network Camera
- 5MP 2592 x 1944 @ 30fps
- 1/2.7″CMOS
- WDR: 120 dB
- Lens: 1.4 mm
- 0.006 lux
- IR up to 10M
- Micro SD Card up to 256 GB
- Built-in Mic, Audio I/O: 1/1, Alarm I/O: 1/1
- Intelligent Video Analysis(IVS): Tripwire, Intrusion
- People counting, Intelligent search, Heat map
- ICT Spec
- H.265+
- NVR

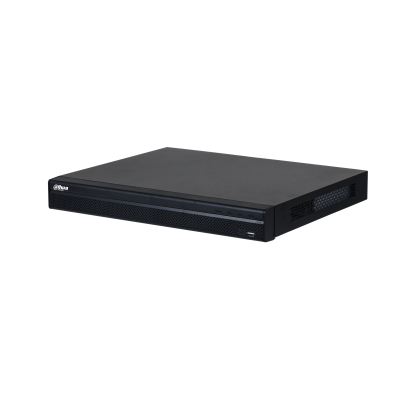

DHI-NVR4208-8P-4KS2/L
8 Channel 1U 2HDDs 8 PoE Network Video Recorder
- 8 PoE, ONVIF
- H.265+
- 2 HDD up to 10TB for each HDD
- 1 RJ-45 port (10/100/1000 Mbps)
- 1 HDMI, 1 VGA, 2 USB
- Audio I/O : 1/1, Alarm I/O : 4/2
- Access Bandwidth : 160 Mbps
- Storage Bandwidth : 160 Mbps
- Forwarding Bandwidth : 64 Mbps
- ICT Spec
- Functions by camera : Perimeter Protection, Face Detection, SMD Plus, People Counting
DHI-NVR4216-8P-4KS2/L
16 Channel 1U 2HDDs 16 PoE Network Video Recorder
- 16 PoE, ONVIF
- H.265+
- 2 HDD up to 10TB for each HDD
- 1 RJ-45 port (10/100/1000 Mbps)
- 1 HDMI, 1 VGA, 2 USB
- Audio I/O : 1/1, Alarm I/O : 4/2
- Access Bandwidth : 128 Mbps
- Storage Bandwidth : 128 Mbps
- Forwarding Bandwidth : 64 Mbps
- ICT Spec
- Function by camera : Perimeter Protection, Face Detection, SMD Plus, People Counting

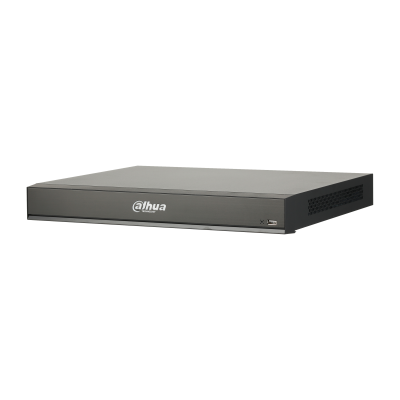

DHI-NVR5216-8P-I
16 Channel 1U 8 PoE AI Network Video Recorder
- 16 Channel, 8 ePoE, ONVIF
- H.265+
- 2 HDD up to 8TB for each HDD
- 1 RJ-45 port(10/100/1000 Mbps)
- 1 HDMI, 1 VGA, 2 USB, 1 RS232, 1 RS485
- Two-way Talk
- Alarm I/O : 4/2
- Third-party support
- Access Bandwidth : 320 Mbps
- Storage Bandwidth: 320 Mbps
- Forwarding Bandwidth: 320 Mbps
- Function : Perimeter Protection, Real-time face Recognition, Face Database Management, Common/Stranger Mode, AI Search, ANPR, Point of Sale(POS)
DHI-NVR4432-4KS2
32 Channel 1.5U 4HDDs 4K&H.265 Lite Network Video Recorder
- 32 Channel access IP camera
- ONVIF
- H.265+
- 4 HDD up to 10 TB for each HDD
- 2 RJ-45 port (10/100/1000 Mbps)
- 1 HDMI, 1 VGA, 2 USB, 1 RS-232, 1 RS-485
- Audio I/O : 1/1, Alarm I/O : 16/4
- Access Bandwidth : 200 Mbps
- Storage Bandwidth : 200 Mbps
- Forwarding Bandwidth : 96 Mbps
- ICT Spec
- Funtion by camera: Perimeter protection, SMD plus, People counting, Heat map
- ANR (Automatic Network Replenishment Technology)
DHI-NVR5832-R-4KS2
32 Channel 2U 8HDDs 4K&H.265 Pro Network Video Recorder
- 32 Channel access IP camera
- ONVIF
- H.265+
- 8 HDD up to 10 TB for each HDD
- 2 RJ-45 port (10/100/1000 Mbps)
- 2 HDMI, 2 VGA, 4 USB, 1 RS-232, 1 RS-485
- Alarm I/O: 16/6, Two way talk
- Acess Bandwidth: 320 Mbps
- Storage Bandwidth: 320 Mbps
- Forwarding Bandwidth: 320 Mbps
- Supports RAID 0/1/5/10
- Function: Fisheye dewarping, ANPR, ANR (Automatic Network Replenishment Technology), Tripwire, Intrusion, Missing Abandon detection, Face detection, People counting, Heat map

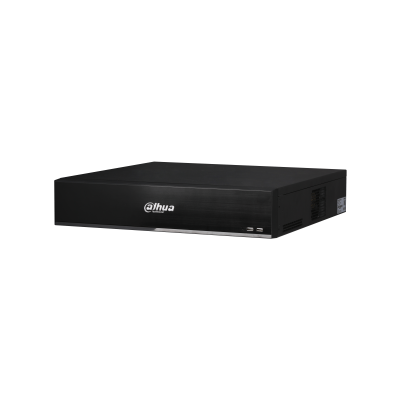

DHI-NVR5832-I/L
32 Channel 2U 8HDDs WizMind Network Video Recorder
- 32 Channel access IP camera
- ONVIF
- H.265+
- 8 HDD up to 10 TB for each HDD
- 2 RJ-45 port (10/100/1000 Mbps)
- 2 HDMI, 1 VGA, 4 USB, 1 RS-232, 1 RS-485
- Alarm I/O: 16/6, Two way talk
- Acess Bandwidth: 320 Mbps
- Storage Bandwidth: 320 Mbps
- Forwarding Bandwidth: 320 Mbps
- Supports RAID 0/1/5/10
- Function by camera: ANPR, People counting, Stereo Analysis
- Function: Perimeter protection, Face recognition, SMD plus, Video metadata, Image Search, Heat map, Blocklist alarm, False alarm filter
DHI-NVR5864-R-4KS2
64 Channel 2U 4K&H.265 Pro Network Video Recorder
- 64 Channel access IP camera
- ONVIF
- H.265+
- 8 HDD up to 10 TB for each HDD
- 2 RJ-45 port (10/100/1000 Mbps)
- 2 HDMI, 2 VGA, 4 USB, 1 RS-232, 1 RS-485
- Alarm I/O : 16/4, Two way talk
- Access Bandwidth : 320 Mbps
- Storage Bandwidth : 320 Mbps
- Forwarding Bandwidth : 320 Mbps
- Supports RAID 0/1/5/10
- Funtion : Fisheye dewarping, ANR (Automatic Network Replenishment Technology), ANPR, People counting, Heat map, Face detection, Tripwire, Intrusion, Missing abandon detection
- VMS
DHI-DSS4004-S2
An Economical Surveillance System
- 256 Channel
- 3 HDD
- 4 RJ-45 port (10/100/1000 Mbps)
- 2 HDMI, 1 VGA
- Video input per Server: 350 Mbps
- Video output per Server: 350 Mbps
- Playback Bandwidth per Server: 150 Mbps
- Video Storage Bandwidth per Server: 150 Mbps
- Support Hot Swap
- Main Function: Organization Management, Device Management, Users&Authorities, Storage, Bind Resource, Playback, Emap, Video Wall, Live view, Event Management, Download Center, Personnel Management, Access Control, Video Intercom, Visitor Management, Vehicle Entrance, Alarm Controller, Face Reconition, ANPR, Flow Analysis, Log, Backup and Restore
