Hikvision Products

- Camera

DS-2CD1023G0E-I

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.7″ CMOS
  • Lens : 4 mm
  • Lux : 0.01
  • IR up to 30M
  • WDR : DWDR
  • ICT Spec
  • Function: Motion detection, Video tampering  alarm, Exception
  • H.265+
  • IP 67

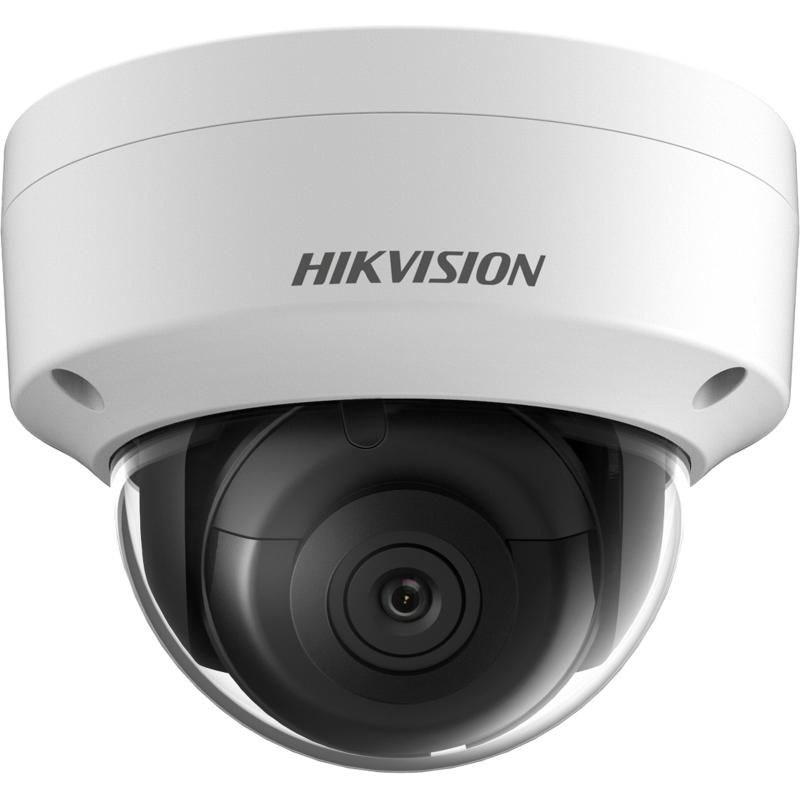

DS-2CD1123G0E-I

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.7″ CMOS
  • Lens : 4 mm
  • Lux : 0.01
  • IR up to 30M
  • WDR : DWDR
  • ICT Spec
  • Function: Motion detection, Video tampering  alarm, Exception
  • H.265+
  • IP 67, IK 10

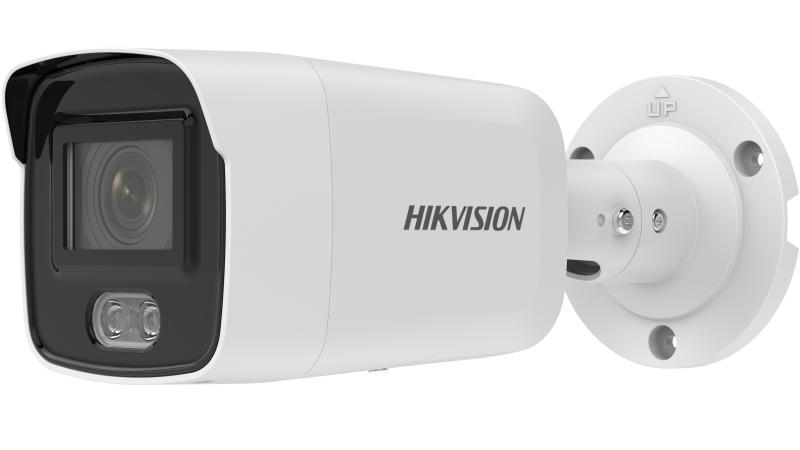

DS-2CD1027G0-LUF

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.8″ CMOS
  • Lens : 2.8-4 mm
  • Lux : 0.001
  • White Light up to 30M
  • WDR : DWDR
  • 24/7 Colorful imaging
  • Built-in Mic.
  • Function: Motion detection, Video tampering alarm, Exception
  • H.265+
  • IP 67

DS-2CD1327G0-L(UF)

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.8″ CMOS
  • Lens : 2.8 mm
  • Lux : 0.001
  • White light up to 30M
  • WDR : DWDR
  • 24/7 colorful imaging
  • Function: Motion detection, Video tampering  alarm, Exception
  • H.265+
  • IP 67

DS-2CD2621G0-IZ

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.7″ CMOS
  • Lens : 2.8-12 mm
  • Lux : 0.005
  • IR up to 60M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Vari-focal motoeized lens
  • Audio I/O: 1/1, Alarm I/O: 1/1
  • Funtion: Line crossing detection, Intrusion detection
  • H.265+
  • IP 67

DS-2CD2721G0-IZ

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.7″ CMOS
  • Lens : 2.8-12 mm
  • Lux : 0.005
  • IR up to 40M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Vari-focal motoeized lens
  • Audio I/O: 1/1, Alarm I/O: 1/1
  • Funtion: Line crossing detection, Intrusion detection
  • H.265+
  • IP 67, IK 10

DS-2CD2726G2-IZS

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.8″ CMOS
  • Lens : 2.8-12 mm
  • Lux : 0.002
  • IR up to 40M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Vari-focal motoeized lens
  • Audio I/O: 1/1, Alarm I/O: 1/1
  • Function: Line crossing detection, Intrusion detection, Scene change detection, Region entrance/exiting detection
  • Classification of Human and Vehicle
  • H.265+
  • IP 66, IK 10

DS-2CD2626G2-IZS

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.8″ CMOS
  • Lens : 2.8-12 mm
  • Lux : 0.002
  • IR up to 60M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Vari-focal motoeized lens
  • Audio I/O: 1/1, Alarm I/O: 1/1
  • Function: Line crossing detection, Intrusion detection, Scene change detection, Region entrance/exiting detection
  • Classification of Human and Vehicle
  • H.265+
  • IP 66, IK 10

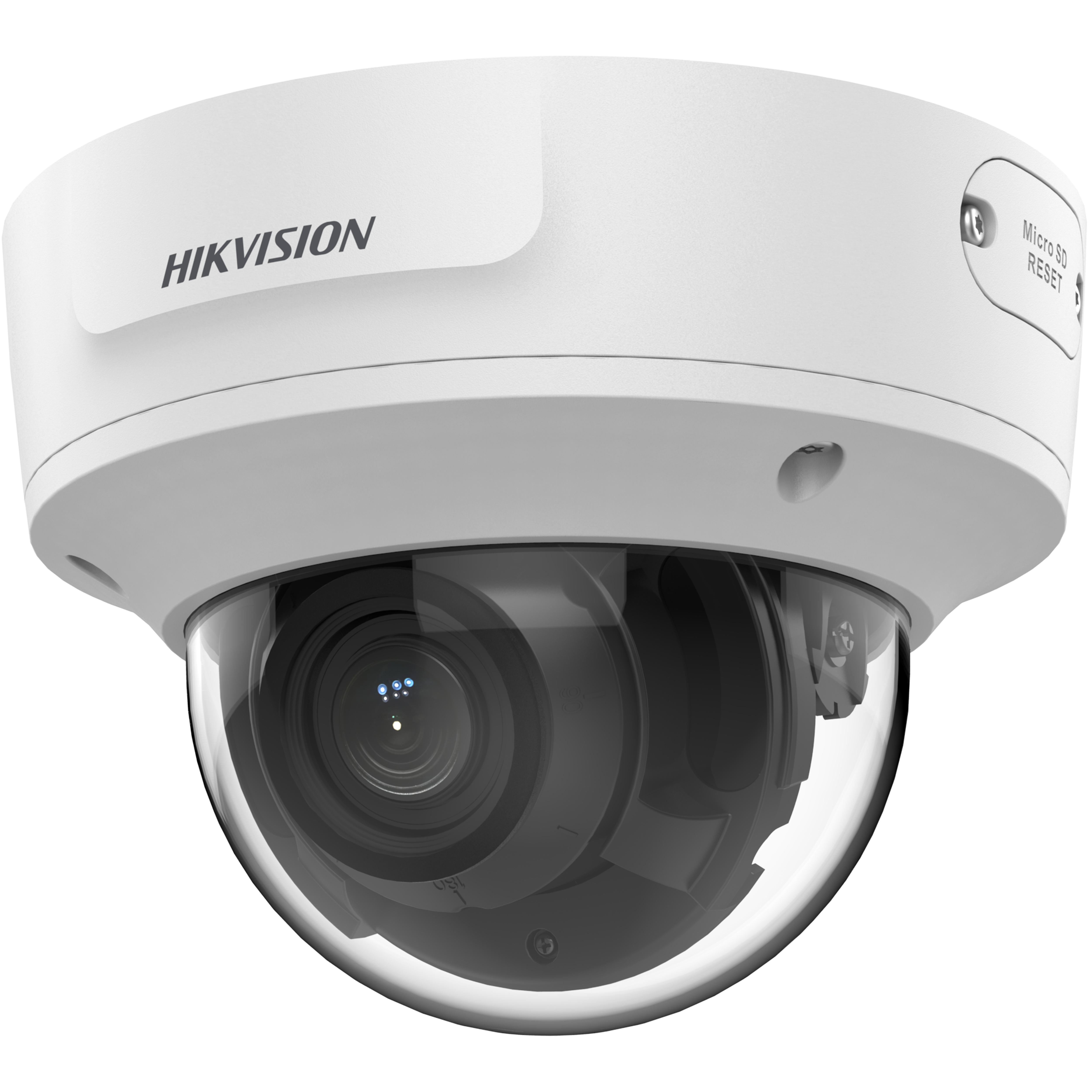

DS-2CD3726G2T-IZS

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.8″ CMOS
  • Lens : 2.7-13.5 mm
  • Lux : 0.002
  • IR up to 40M
  • WDR : 120 dB
  • Funtion: Line crossing, Intrusion
  • Motorized varifocal lens
  • ONVIF
  • Function: Perimeter protection, Face capture
  • Classification of Human and Vehicle
  • ICT Spec
  • H.265+
  • IP 67, IK 10

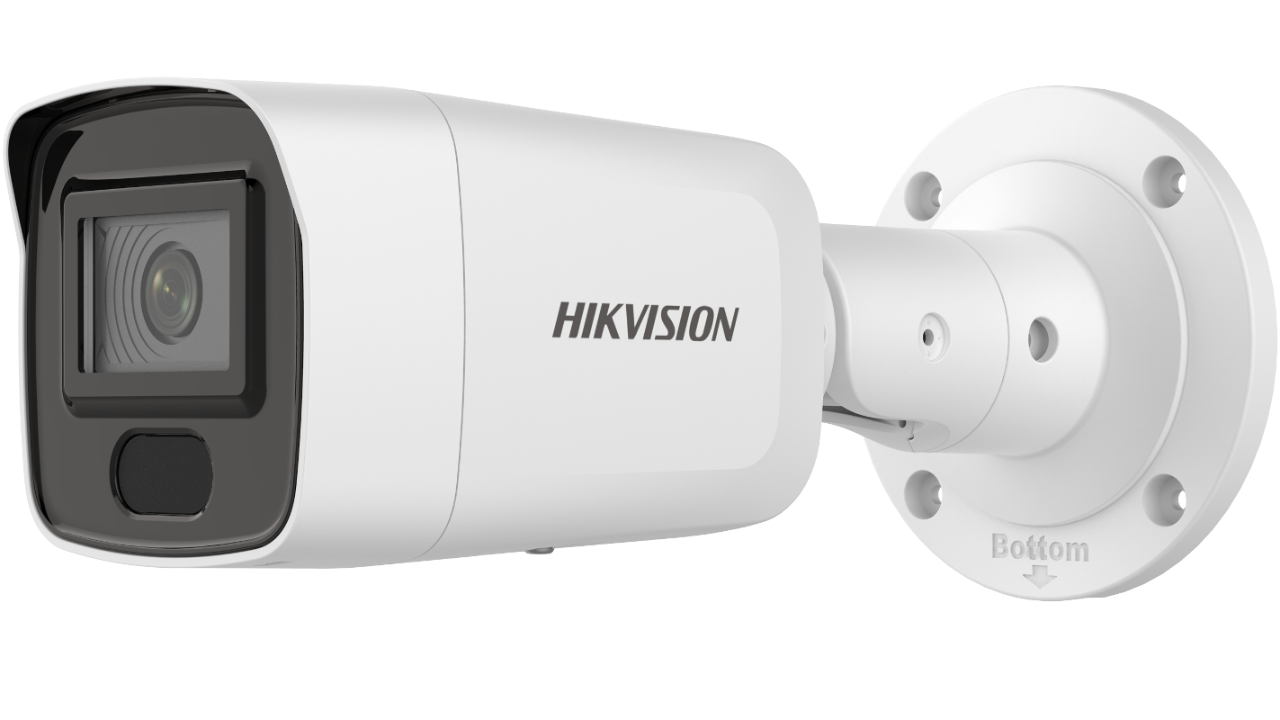

DS-2CD2027G2-L

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.8″ CMOS
  • Lens : 2.8 mm
  • Lux : 0.0005
  • White light up to 40M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Built-in Mic.
  • 24/7 colorful imaging
  • Function: Perimeter protection, Face capture
  • Classification of Human and Vehicle
  • H.265+
  • IP 67

DS-2CD3121G0-I

  • 2MP 1920 x 1080 @ 25fps
  • 1/2.7″ CMOS
  • Lens : 2.8-4 mm
  • Lux : 0.003
  • IR up to 40M
  • WDR : 120 dB
  • Funtion: Line crossing, Intrusion
  • ICT Spec
  • H.265+
  • IP 67, IK 10

DS-2CD3626G2T-IZS

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.8″ CMOS
  • Lens : 2.7-13.5 mm
  • Lux : 0.002
  • IR up to 60M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Audio I/O: 1/1, Alarm I/O: 2/2
  • Function: Face capture, Perimeter protection
  • Classification of Human and Vehicle
  • ICT Spec
  • H.265+
  • IP 66, IK 10

DS-2CD2646G2-IZS

  • 4MP 2668 x 1520 @ 30fps
  • 1/3″ CMOS
  • Lens : 2.8-12 mm
  • Lux : 0.003
  • IR up to 60M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Vari-focal motoeized lens
  • Audio I/O: 1/1, Alarm I/O: 1/1
  • Function: Line crossing detection, Intrusion detection, Region entrance/exiting detection
  • Classification of Human and Vehicle
  • H.265+
  • IP 66, IK 10

DS-2CD2047G2-L

  • 4MP 2688 x 1520 @ 30fps
  • 1/1.8″ CMOS
  • Lens : 2.8 mm
  • Lux : 0.0005
  • White light up to 40M
  • WDR : 130 dB
  • Micro SD Card 256 GB
  • Built-in Mic.
  • 24/7 colorful imaging
  • Function: Perimeter protection, Face capture
  • Classification of Human and Vehicle
  • H.265+
  • IP 67

DS-2CD3056G2-IS

  • 5MP 2592 x 1944 @ 25fps
  • 1/2.7″ CMOS
  • Lens : 2.8-12 mm
  • Lux : 0.003
  • IR up to 40M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Audio I/O : 1/1, Alarm I/O : 1/1
  • Function: Line crossing detection, Intrusion detection
  • Classification of Human and Vehicle
  • H.265+
  • IP 67

DS-2CD3156G2-IS

  • 5MP 2592 x 1944 @ 25fps
  • 1/2.7″ CMOS
  • Lens : 2.8 mm
  • Lux : 0.003
  • IR up to 40M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Built-in Mic, Audio I/O: 1/1, Alarm I/O: 1/1
  • Function: Perimeter protection
  • Classification of Human and Vehicle
  • H.265+
  • IP 67, IK 10

DS-2CD2686G2-IZS

  • 8MP 3840 x 2160 @ 25fps
  • 1/1.8″ CMOS
  • Lens : 2.8-12 mm
  • Lux : 0.003
  • IR up to 60M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • 4K Ultra HD
  • Vari-focal motoeized lens
  • Audio I/O: 1/1, Alarm I/O: 1/1
  • Function: Line crossing detection, Intrusion detection
  • Classification of Human and Vehicle
  • H.265+
  • IP 66, IK 10

DS-2CD2786G2-IZS

  • 8MP 3840 x 2160 @ 25fps
  • 1/1.8″ CMOS
  • Lens : 2.8-12 mm
  • Lux : 0.003
  • IR up to 40M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • 4K Ultra HD
  • Vari-focal motoeized lens
  • Audio I/O: 1/1, Alarm I/O: 1/1
  • Function: Line crossing detection, Intrusion detection
  • Classification of Human and Vehicle
  • H.265+
  • IP 66, IK 10

- Special Camera

DS-2DY9236I-CWX(W/316L)

  • 2MP 1920 x 1080 @ 30fps
  • 1/1.8″ CMOS
  • 120 dB WDR
  • F1.5 to F4.5 aperture
  • Color: 0.002 lux, B/W: 0.0002 lux
  • Digital Zoom 16x, Zoom speed 4.4 s
  • Privacy Mask
  • Alarm I/O
  • Motion Detection, Face Detection, Video Tampering Detection, Audio Exception Detection, Line Crossing Detection, Region Entrance/Exiting Detection
  • IR 150 m
  • Micro SD Card up to 256 GB
  • H.265+
  • IP 68, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Explosion-proof

DS-2CD2955FWD-IS

  • 5MP 2560 x 1920 @ 30fps
  • 1/2.5″ CMOS
  • Lens : 1.05 mm
  • Lux : 0.01
  • IR up to 8M
  • WDR : 120 dB
  • Micro SD Card 128 GB
  • Audio I/O: 1/1, Alarm I/O: 1/1
  • FOV: horizontal field of view 180°, vertical field of view 180°
  • Function: Motion detection, Dynamic analysis, Intrusion detection, Line crossing detection
  • Dual video streams
  • Support 14 display modes
  • H.265+

DS-2DE4225IW-DE (S6)

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.8″ CMOS
  • Lens : 4.8-120 mm
  • Lux : 0.005
  • IR up to 100M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Audio I/O: 1/1, Alarm I/O: 1/1
  • 25x Optical zoom, 16x Digital zoom
  • Dark fighter technology
  • Pan: 360°
  • Function: Motion detection, Face detection, Intrusion detection, Line crossing detection, region entrance/exiting detection, Unattended baggage detection, Object removal detection
  • Smart Record: ANR, Dual-VCA
  • H.265
  • IP 66

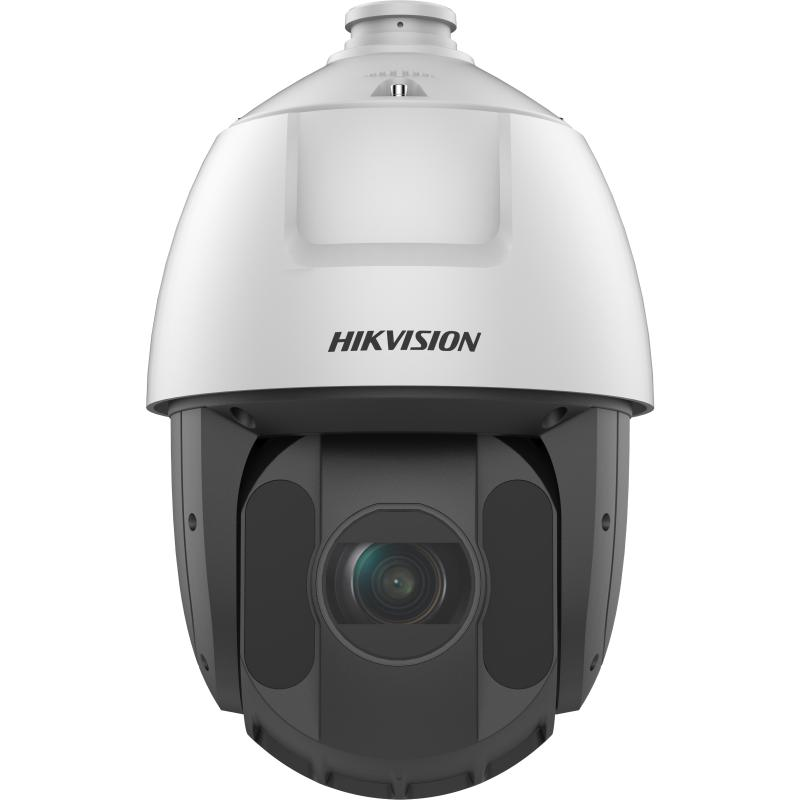

DS-2DE5225IW-AE(E)

  • 2MP 1920 x 1080 @ 30fps
  • 1/2.8″ CMOS
  • Lens : 4.8-120 mm
  • Lux : 0.005
  • IR up to 150M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Audio I/O: 1/1, Alarm I/O: 1/1
  • 25x Optical zoom, 16x Digital zoom
  • Dark fighter technology
  • Pan: 360°
  • Function: Motion detection, Face detection, Intrusion detection, Line crossing detection, region entrance/exiting detection, Unattended baggage detection, Object removal detection
  • Smart Record: ANR, Dual-VCA
  • ONVIF
  • H.265+
  • IP 66

iDS-2CD7A46G0-IZHS

  • 4MP 2688 x 1520 @ 30fps
  • 1/1.8″ CMOS
  • Lens : 8-32 mm
  • Lux : 0.005
  • IR up to 100M
  • WDR : 140 dB
  • Micro SD Card 256 GB
  • Audio I/O: 1/1, Alarm I/O: 2/2
  • DeepinView Series
  • License Plate Recognition (LPR)
  • Function: Road traffic and Vehicle detection, Perimeter protection, Metadata
  • ONVIF
  • H.265+
  • IP 67, IK 10

DS-TCG227-AIR (12V/Poe)

  • 2MP 1920 x 1200 @ 25fps
  • 1/2.8″ CMOS
  • Lens : 3.1-9 mm
  • Lux : 0.002
  • Micro SD Card 128 GB
  • 1 Audio output, 3 triggered input, 2 relay output
  • Support open/close of barrier gates
  • Support multi-frame LPR
  • Support dirty license plate recognition
  • Up to 30,000 whitelist
  • One touch focus
  • Manual capture and ANPR
  • Function: Vehicle Recognition
  • H.265
  • IP 67, IK 10

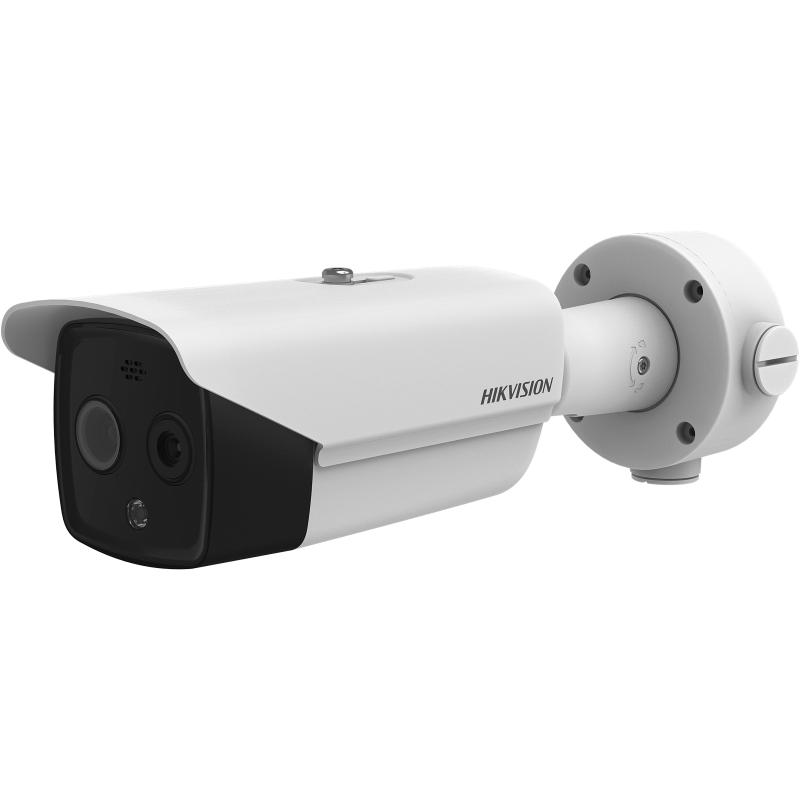

DS-2TD2617-6/PA

  • 4MP 2688 x 1520 @ 30fps
  • 1/2.7″ CMOS
  • Image Sensor: Vanafium Oxide Uncooled Focal Plane Arrays
  • Lens : 4/8 mm
  • Lux : 0.0089
  • IR up to 40M
  • WDR : 120 dB
  • Micro SD Card 256 GB
  • Audio I/O: 1/1, Alarm I/O: 2/2
  • Function: VCA, Temperature Measurement, Fire Detection
  • ONVIF
  • H.265
  • IP 66

- NVR

DS-7716NI-K4

  • NVR 8 MP
  • IP Video Input 16 channel
  • Two-way audio
  • Incoming Bandwidth : 160 Mbps
  • Outgoing Bandwidth : 160 Mbps
  • 1 HDMI, 1 VGA
  • 2 RJ-45 (10/100/1000 Mbps)
  • 4 HDDs up to 6 TB for each HDD
  • Audio I/O, Alarm I/O
  • Smart Function : VCA (Video Content Analytics), Heat map, ANPR and people counting
  • Decoding format : H.265+

DS-7716NI-K4/16P

  • NVR 8 MP
  • IP Video Input 16 channel
  • PoE 16 Channel
  • Two-way audio
  • Incoming Bandwidth : 160 Mbps
  • Outgoing Bandwidth : 160 Mbps
  • 1 HDMI, 1 VGA
  • 1 RJ-45 (10/100/1000 Mbps)
  • 4 HDDs up to 6 TB for each HDD
  • Audio I/O, Alarm I/O
  • Supports various specific function cameras
  • Including thermal camera/ fisheye/ people counting/ heat map/ ANPR
  • Decoding format : H.265+
  • ICT Spec

DS-7716NI-I4(B)

  • NVR 12 MP
  • IP Video Input 16 channel
  • Two-way audio
  • Incoming Bandwidth : 160 Mbps
  • Outgoing Bandwidth : 256 Mbps
  • 2 HDMI, 1 VGA
  • 2 RJ-45 (10/100/1000 Mbps)
  • 4 HDDs up to 10 TB for each HDD
  • Audio I/O, Alarm I/O
  • Function: VCA detection, Heat map, ANPR, People counting, POS
  • Dual Steam
  • Smooth steaming technology
  • Decoding format : H.265+

DS-7732NI-K4

  • NVR 8 MP
  • IP Video Input 32 channel
  • Two-way audio
  • Incoming Bandwidth : 256 Mbps
  • Outgoing Bandwidth : 160 Mbps
  • 1 HDMI, 1 VGA
  • 2 RJ-45 (10/100/1000 Mbps)
  • 4 HDDs up to 8 TB for each HDD
  • Audio I/O, Alarm I/O
  • Smart Function : VCA (Video Content Analytics), Heat map, ANPR and people counting
  • Decoding format : H.265+

DS-7732NI-K4/16P

  • NVR 8 MP
  • IP Video Input 32 channel
  • PoE 16 Channel
  • Two-way audio
  • Incoming Bandwidth : 256 Mbps
  • Outgoing Bandwidth : 160 Mbps
  • 1 HDMI, 1 VGA
  • 1 RJ-45 (10/100/1000 Mbps)
  • 4 HDDs up to 6 TB for each HDD
  • Audio I/O, Alarm I/O
  • Supports multiple VCA events
  • Function: people counting/ heat map/ ANPR
  • Decoding format : H.265+

DS-7732NI-I4(B)

  • NVR 12 MP
  • IP Video Input 32 channel
  • Two-way audio
  • Incoming Bandwidth : 256 Mbps
  • Outgoing Bandwidth : 256 Mbps
  • 2 HDMI, 1 VGA
  • 2 RJ-45 (10/100/1000 Mbps)
  • 4 HDDs up to 10 TB for each HDD
  • Audio I/O, Alarm I/O
  • Function: VCA detection, Heat map, ANPR, People counting, POS
  • Dual Steam
  • Smooth steaming technology
  • Decoding format : H.265+
  • ICT Spec

DS-9632NI-I8

  • NVR 12 MP
  • IP Video Input 32 channel
  • Two-way audio
  • Incoming Bandwidth : 320 Mbps
  • Outgoing Bandwidth : 256 Mbps
  • 2 HDMI, 2 VGA
  • 2 RJ-45 (10/100/1000 Mbps)
  • 8 HDDs up to 10 TB for each HDD
  • Audio I/O, Alarm I/O
  • Support some special cameras
  • Support RAID 0/1/5/6/10 & N+1 hot spare
  • Smart Function: VCA detection, people counting/ heat map/ ANPR
  • Smooth steaming technology
  • Decoding format : H.265+

DS-9664NI-I8

  • NVR 12 MP
  • IP Video Input 64 channel
  • Two-way audio
  • Incoming Bandwidth : 320 Mbps
  • Outgoing Bandwidth : 256 Mbps
  • 2 HDMI, 2 VGA
  • 2 RJ-45 (10/100/1000 Mbps)
  • 8 HDDs up to 10 TB for each HDD
  • Audio I/O, Alarm I/O
  • Support some special cameras
  • Support RAID 0/1/5/6/10 & N+1 hot spare
  • Smart Function: VCA detection, people counting/ heat map/ ANPR
  • Smooth steaming technology
  • Decoding format : H.265+

DS-9664NI-I16

  • NVR 12 MP
  • IP Video Input 64 channel
  • Two-way audio
  • Incoming Bandwidth : 320 Mbps
  • Outgoing Bandwidth : 256 Mbps
  • 2 HDMI, 1 VGA
  • 2 RJ-45 (10/100/1000 Mbps)
  • 16 HDDs up to 10 TB for each HDD
  • Audio I/O, Alarm I/O
  • Support some special cameras
  • Support RAID 0/1/5/6/10 & N+1 hot spare
  • Smart Function: VCA detection, people counting/ heat map/ ANPR
  • Smooth steaming technology
  • Decoding format : H.265+
